DORIANA CLASSIC YACHT SPECIFICATIONS
COMMENT
Main Characteristics
Build: Frederikssund,Denmark
Year: 1930
Restored: 2003-2005

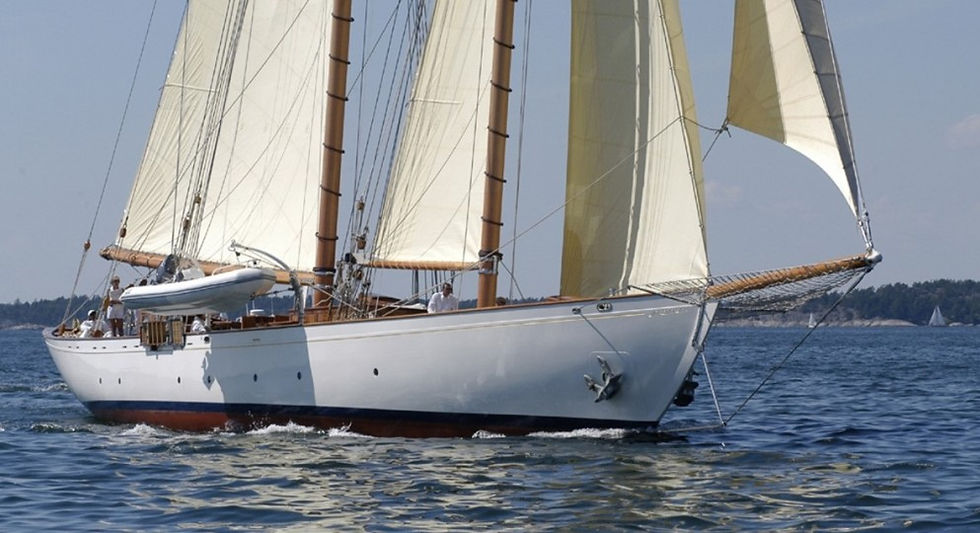

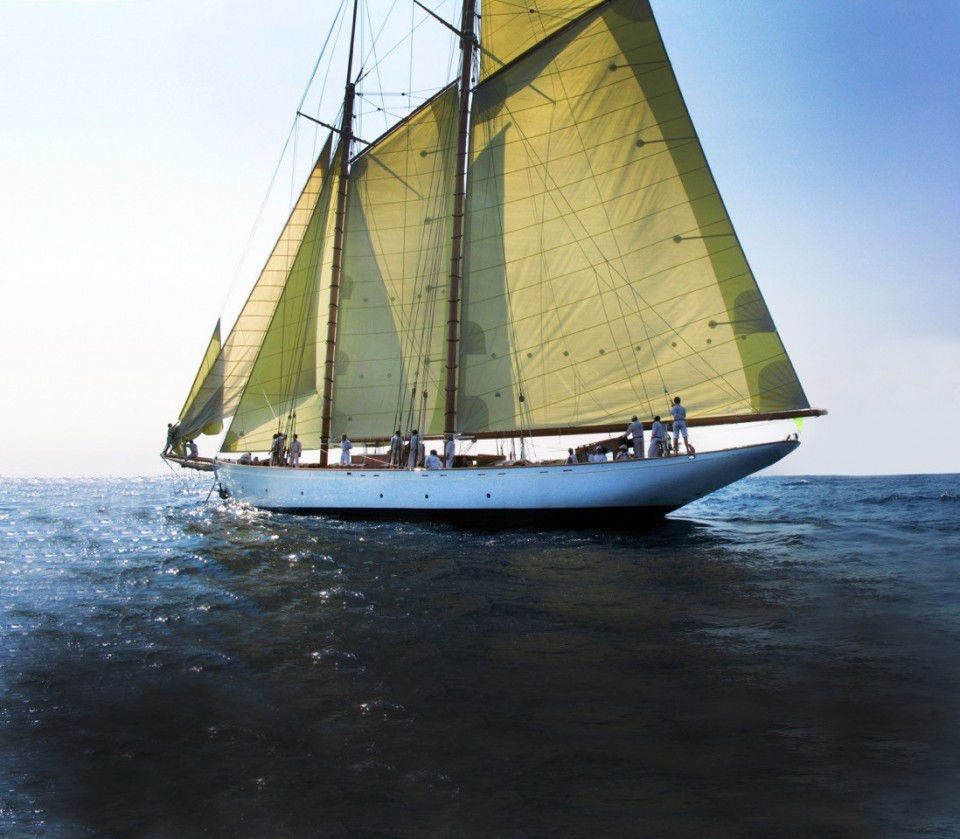

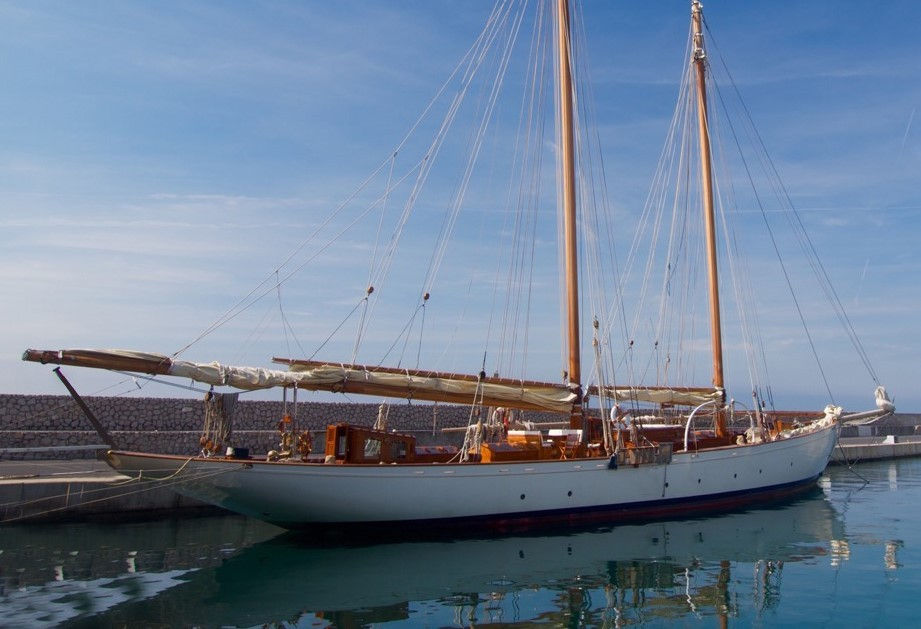

Rig: 2-masted schooner
Hull: Teak & Iroko over Oak
Frames:Superstructure TeakDeck Teak
Engineering: A. von Lindholm
Exterior Styling: E. WedellInterior
Design: Donald Starkey
Speeds: 8 – 10 Knots
Accommodation: 10 guests in 5 staterooms7 crew
Flag: Swedish
Dimensions
LOA: 38.00m
Length at waterline: 23.90m
Length of hull: 31.50m
Maximum beam: 6.90m
Draft: 3.80m
Displacement tonnage: 150
Gross tonnage 97
Turbo charged diesel 318hp
Capacities
Fuel 3,000 l / 792.52 USG
Water 8,000 l / 2,113.38 USG
Main engine 1 x Scania Diesel
Engine hours 1,000 (approx.)
Generators 1 x 25kw Kohler 1 x 17.5kw Kohler
Generator hours 1,000 (approx.)
Air conditioning system Cruise Air
Bow thruster Sleipner motors Norway, Hydraulic
Winches Specially built Meissner electric winches, cast bronze to an old model
Anchor

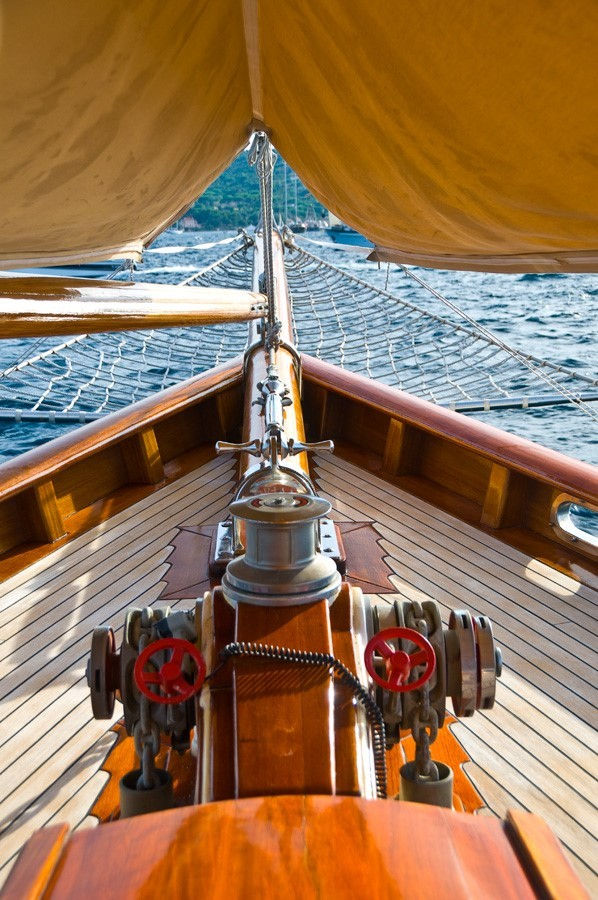

Windlass
Chains
Hawse pipes Propeller
Propeller shaftStern tube SPW, feathering 4 blade propeller
Deck6 Meissner CMB 36E-lassic electric single speed winches
1 Lofrans Super Ercole 3500ww
Navigational Equipment
1 x Furuno Marine VHF Radiotelephone FM-2721
1 x Marin VHF Watertight portable
1 x Furuno FMD 1900C NavNet radar and GPS chart plotter display
1 Silva Nexus Network with:
1 x multi control digital display
1 x wind data digital display
1 x depth sounder
1 x speed log
1 x analog speed log
1 x analog wind angle indicator
1 x analog depth indicator
Engine Room/24v Equipment Scania Marine Engine type D19 44m (318hp at 1990rpm)
Twin Disk Marine transmission MG-5091 (1:2,95)SPW Vairprop DF-260 4 blade
Sidepower Bow thruster SP550HYD/U-37Kohler 17, 5EFOZD 220v/50Hz 12v - Yamaha MotorKohler 2EFOZD 220v/50Hz 24v -
Yamaha Motor1200Ah2v Acid cells battery bank (new 2017)1800Ah Acid cells battery bank (new 2017)Victorian Energy 100A 24c Charger skylla-TGCruise Air MTC60C
Remote MPC-XCCirculation
Pump CPOD80 Circulation Pump P3000BXT
Electric pump EAM40 - 220/380V – 28m3/h at 6mEngine mounted pump AM40 - 28m 3/h at 6m
Security
• 1 ALTAIR8 VZ
• 2 DVES01S Flooding detector
• 2 DN2SMOB level sensor
• 1 x Zodiac 8prs open sea life raft (XDC8BYI9A797) (2017)
• 1 x Bombard 8prs Life raft (XDC1BC48E393) (2017)
Other
• 2 x pump M1 Leroy somer type MBT82 Il
• 1 x Zodiac YL 380 R + 25hp Yamaha outboard engine (2005)
• 1 x Zodiac YL 420 + 50hp Yamaha outboard engine (2005)
2003-2005 Restoration
• New deck fittings• New chain plates
• New 316L Stainless steel inserted in the hull, including stainless steel longitudinal reinforcement stringer
• New rudder, rudder stock and stern tube• New propeller and propeller shaft
• All new electronic equipment
• New electrical system, including cables, switchboards, etc
• New plumbing system, including pipes, tank and pump
• New bilge pump system
• New fire-fighting system
• Fire integrity insulation of engine room
• New fire detection system in each cabin
• New bowsprit, lower main mast, lower foremast with inner reinforcement of aluminium, booms and gaffs
• Parts of rigging not in perfect condition renewed
• Keel bolts in bronze inspected and found to be in perfect condition
• Sails renewed in clipper cream canvas by Doyle US
• 2 x New Zodiac Yachtline 4.2m and 3.8m with Yamaha 50hp and 25hp respectively
2017 Restoration
• 2 new top masts in Douglas Fir installed and all rigging inspected
• Full bimini covers with side curtains• New sail covers
• 2 x 8-person life rafts
• All new batteries in both battery banks
